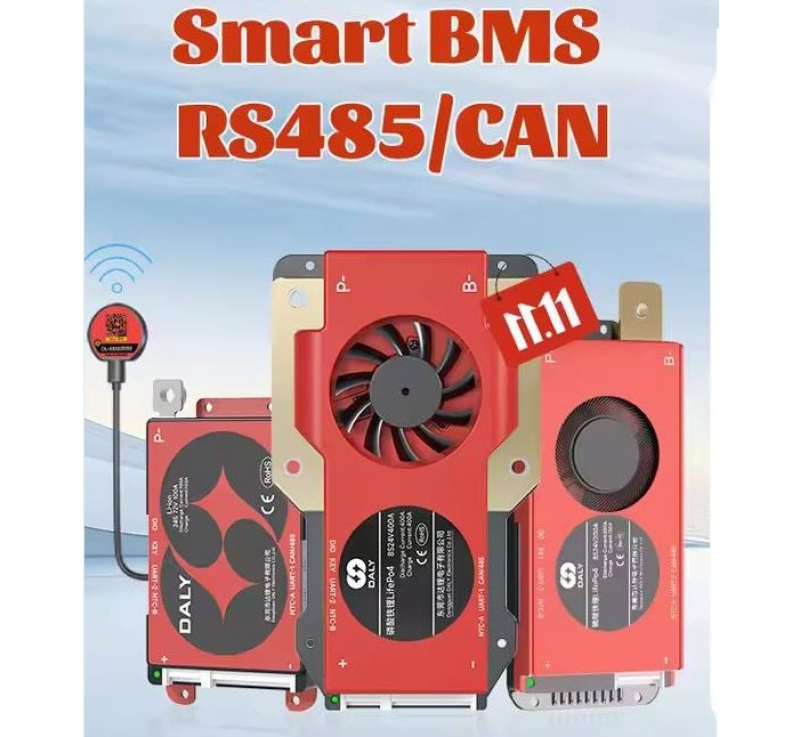

DALY SMART BMS 3~24S 40A~500A Li-ion/LiFePO4
Born strong /Comprehensive upgrade
Waterproof: plastic injection + socketprocess upgrade
Smaller size
Smarter APP/ PC Cloud Manager
Lower temperature rise
Parallel connection:Supports safe expansionof battery packs
Less power consumptionlf you need customized services,please consult customer service for details
Structure:Appearance,Size,etc.
Hardware:NTC,Power display board,Soft Switch,Internal storage,Buzzer.
Software:Mobile phone APP.PC software,communication protocol, etc.
Suitable for lithium batteries in various scenarios

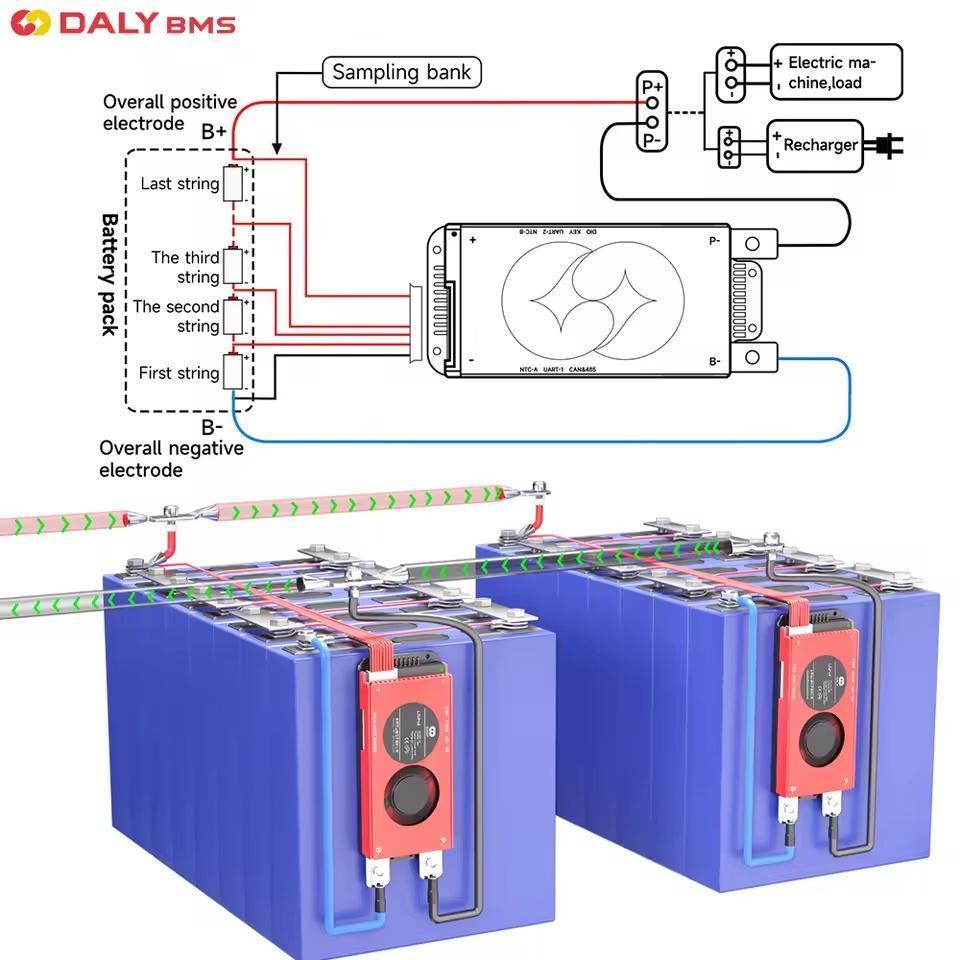

It is suitable for large single cell/cylindrical, cell/soft-packed, cell battery packs as shown in the figure, and can meet the needs of various application scenarios.01
Multiple communication functions+ expansion function ports
CAN, RS485, dual UART communication interfaces,rich expansion applications.
Note: The old version of the accessory jack is not applicable to this type of BMS, this figure is a 24S 60A product example, only for functional display, accessories need to be purchased separately, thank you!02 Self-developed APP Smart and convenient
"SMART BMS"APP, your personal lithium battery steward installedin mobile phone, supports various data visible at a glance.
Note:*Bluetooth or WlFl module needs to be connected to the BMS to use the APP: WiFi module needs to be connected to the BMS to achieve remote monitoring (WiFl module needs to be purchased separately).03 Upgraded PC softwareEfficient management
With the communication cable (UART/RS485/CAN) connected to the Pc, the upgraded version of the PC software open more management rights to the user, which supports setting hierarchical management; And the speed ofprogram upgrade of the BMS through the computer is also significantly improved.04 DALY Cloud - LithiumBattery lOT Platform
DALYS official loT platform provides remote and batch intelligent management of BMS. Battery data is saved in the cloud. Multi-level sub-accounts can be opened and the BMS can be remotely upgraded through the APP + DALY Cloud.Professional responseto high currents:The patented design of high current thick copper PCB board
with excellent electrical conductivity, easy to undertake high current.
MOS package upgrade:Ultra-low internal resistance tohelp efficient overcurrent.The temperature rise of continuous overflow is lower05 Multiple and comprehensiveprotections

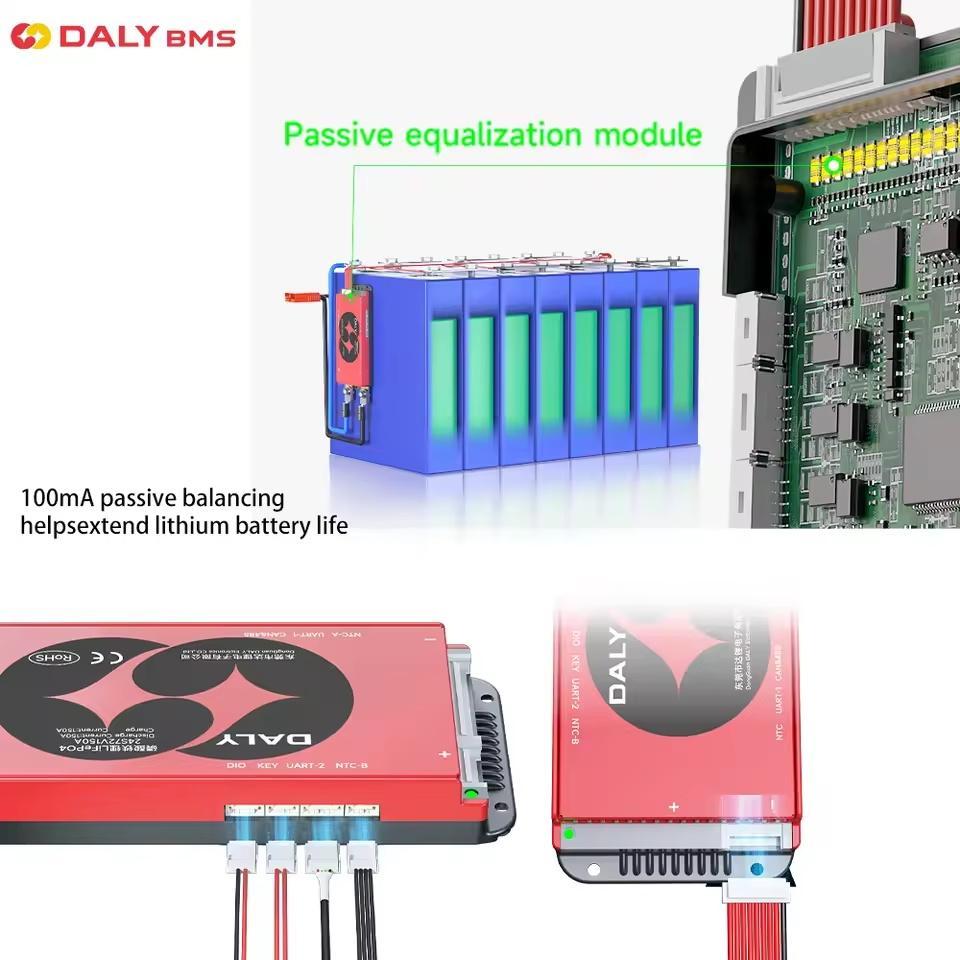

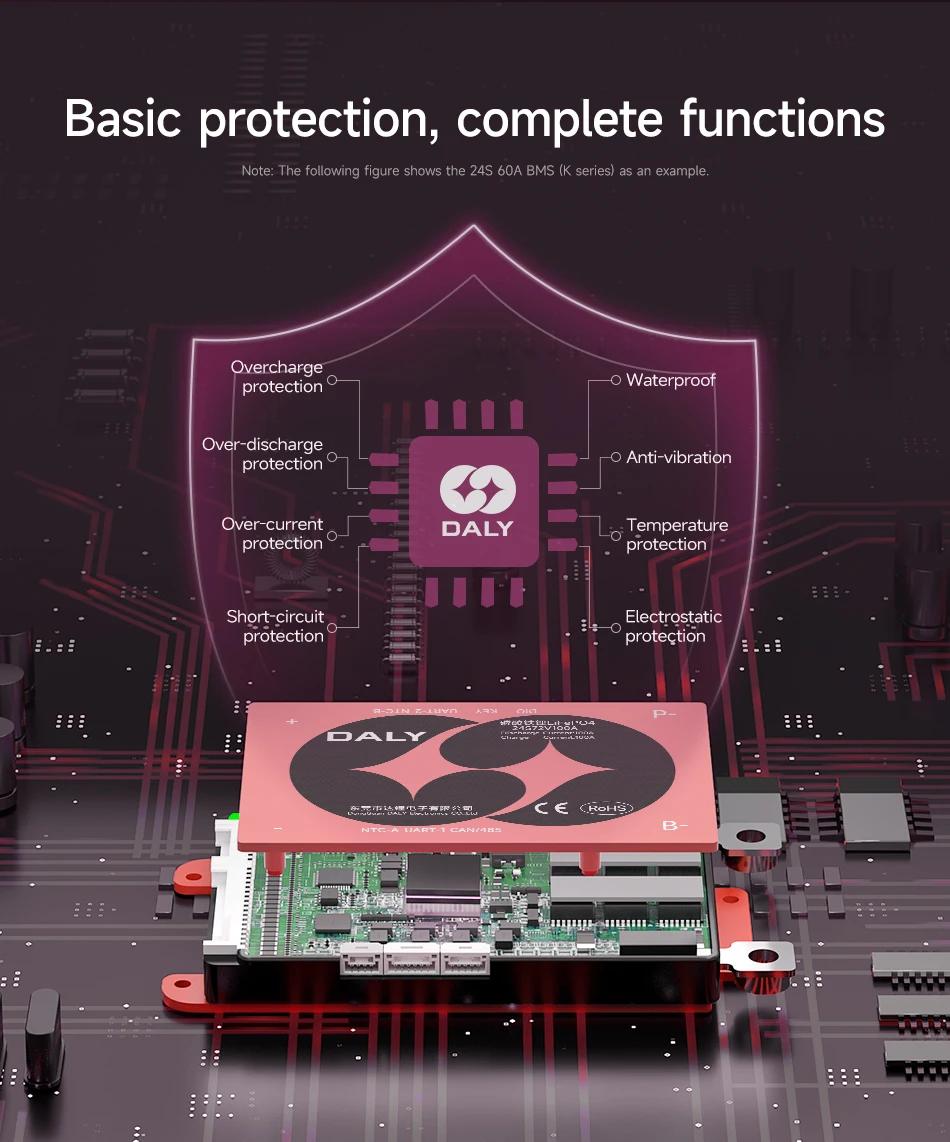

Support parallel connection,Making load easy to start,100mA passive balancing,Temperature protection,
The following four features are shown in 8 S of 60A BMS (K type)01 Low temperature rise
Advanced thermal design technology
Low internal resistance components, advanced thermal design.

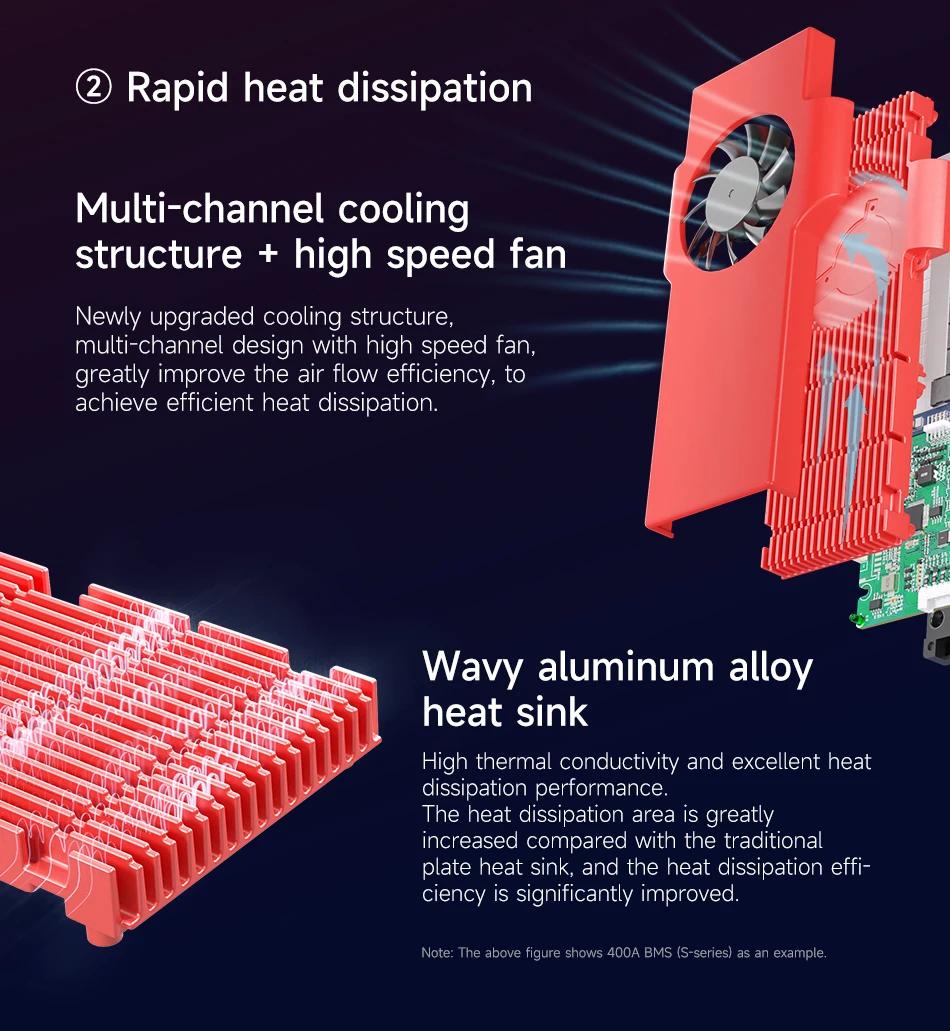

casting excellent flow performance.Rapid heat dissipation02Low power consumption

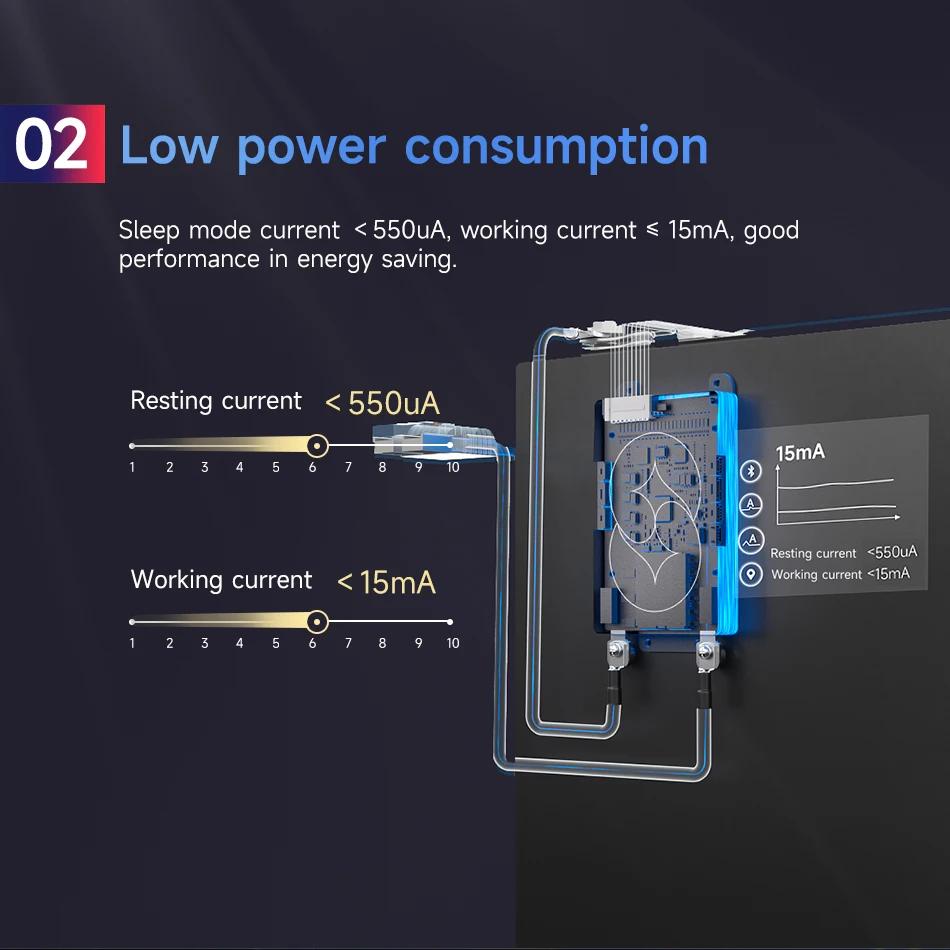

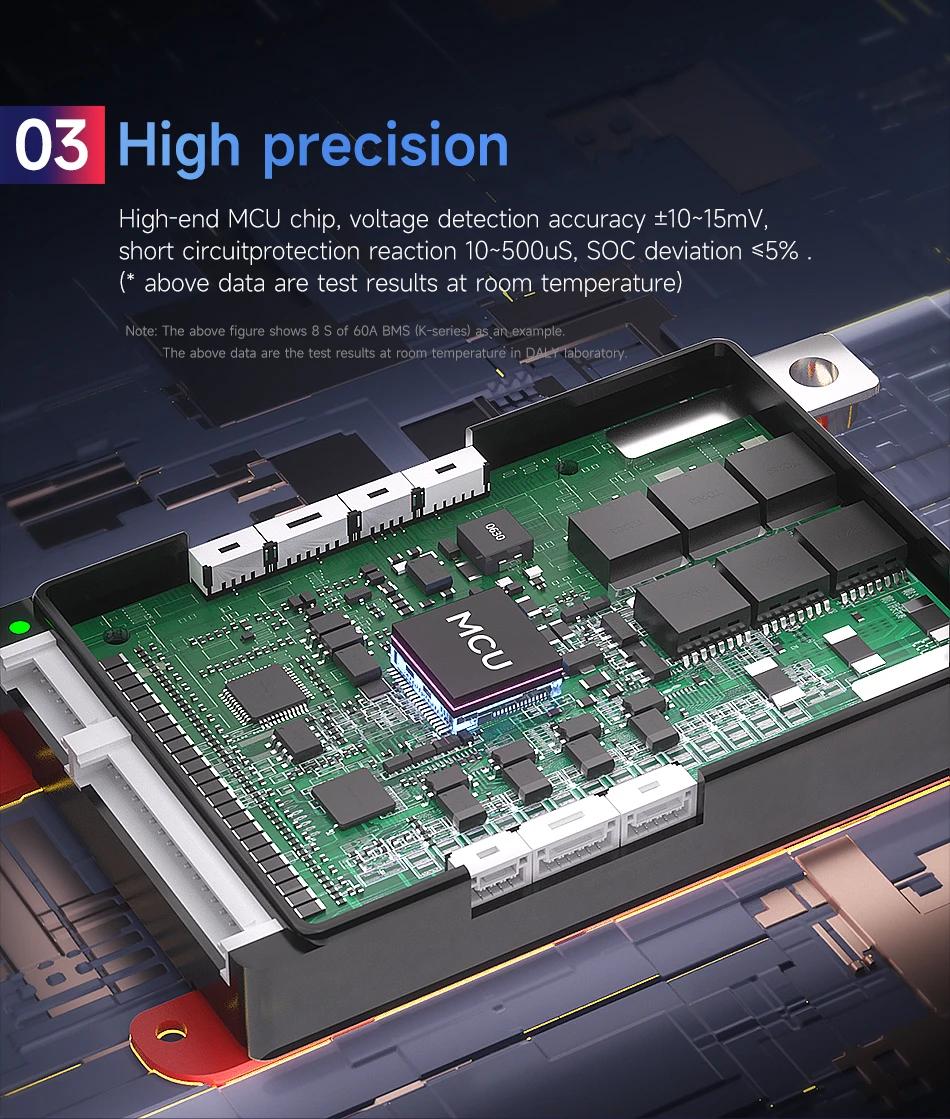

Sleep mode current <550uA, working current s 15mA, good performance in energy saving.03 High precision

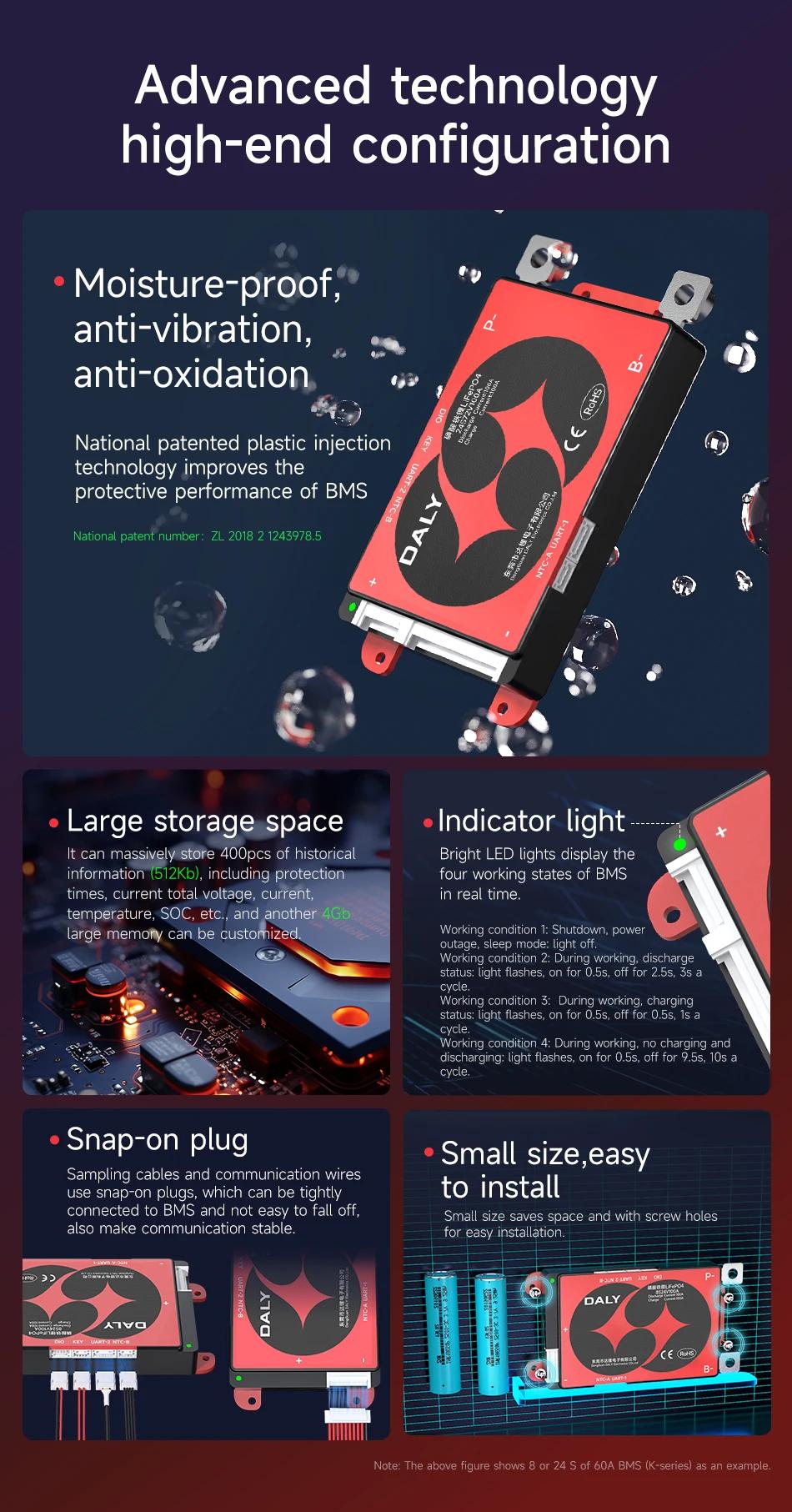

High-end MCU chip, voltage detection accuracy +10~15mV,short circuitprotection reaction 10~500uS, SOC deviation <5%(*above data are test results at room temperature)Advanced technologyhigh-end configuration
Moisture-proof,anti-vibration,anti-oxidation;Large storage space;Indicator light;Snap-on plug;Small size,easy

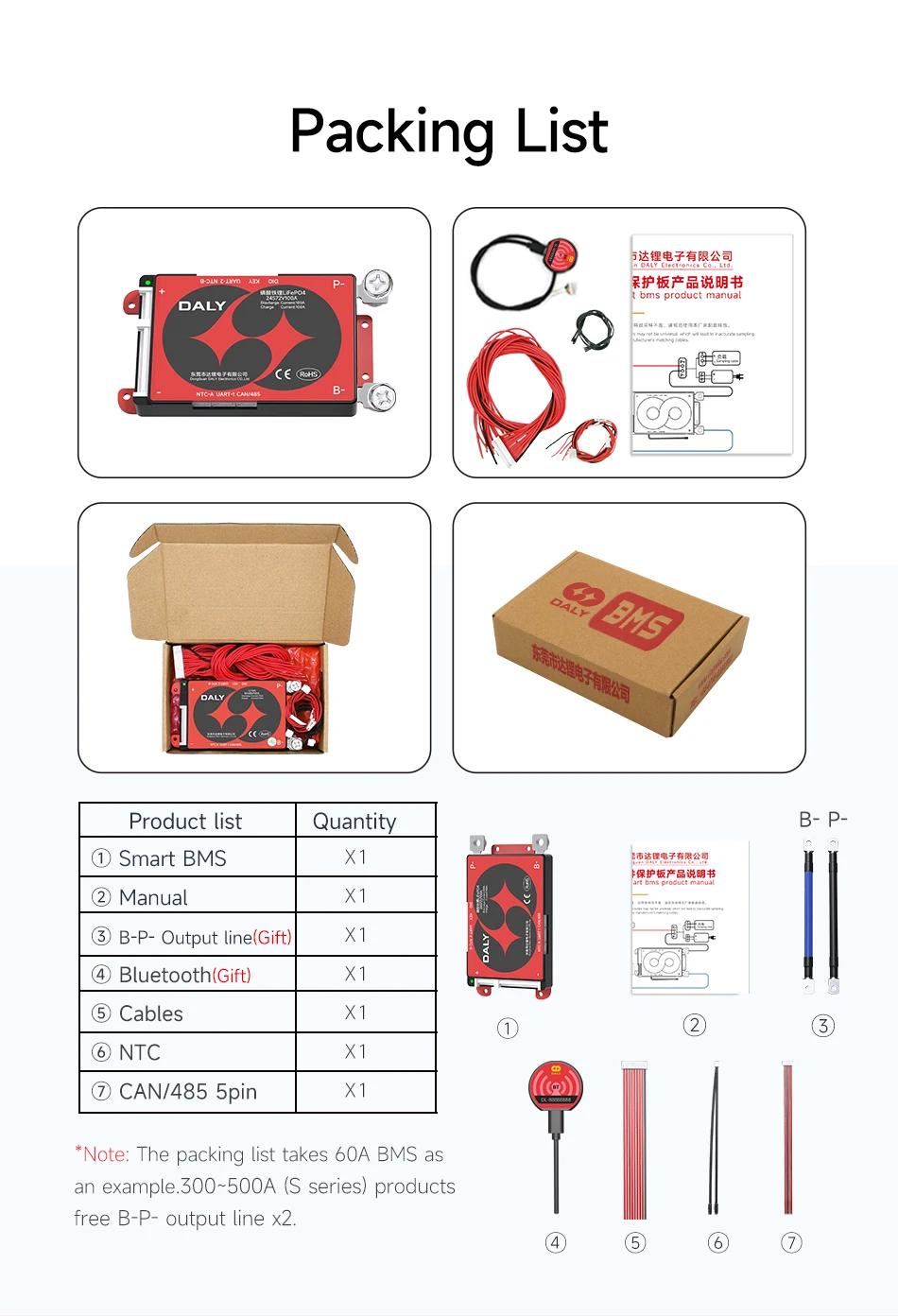

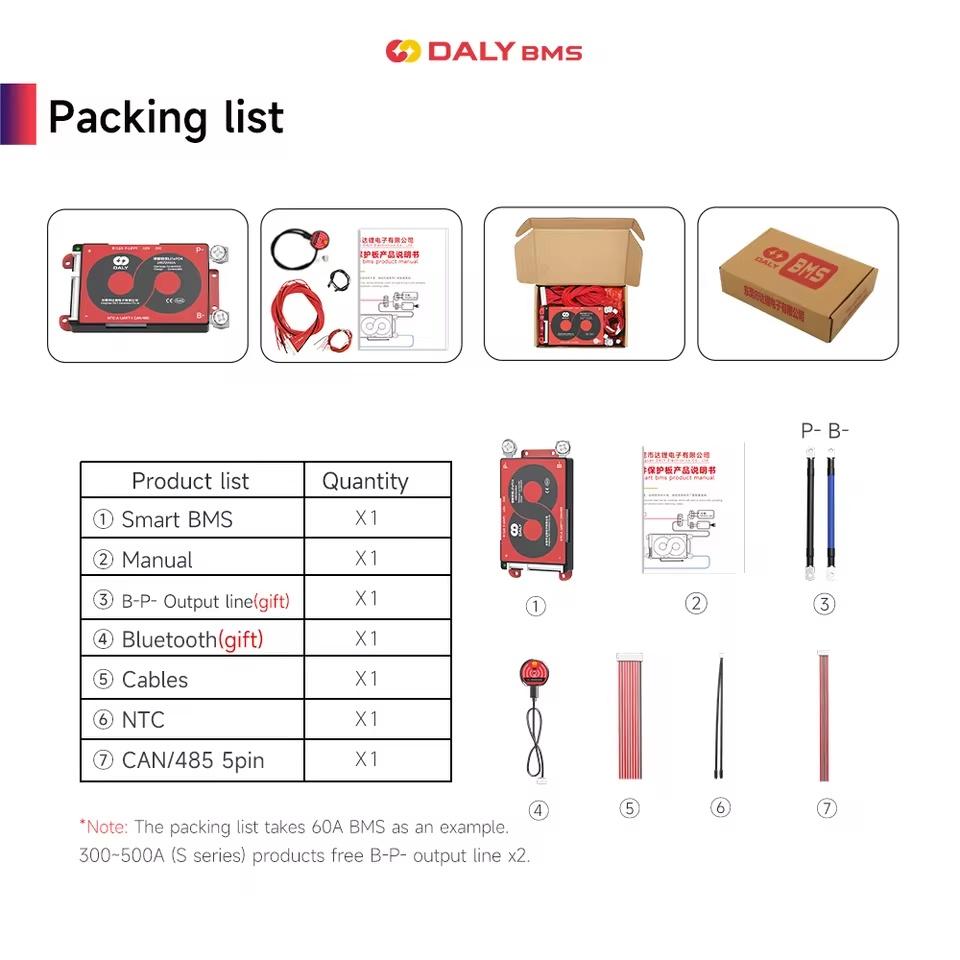

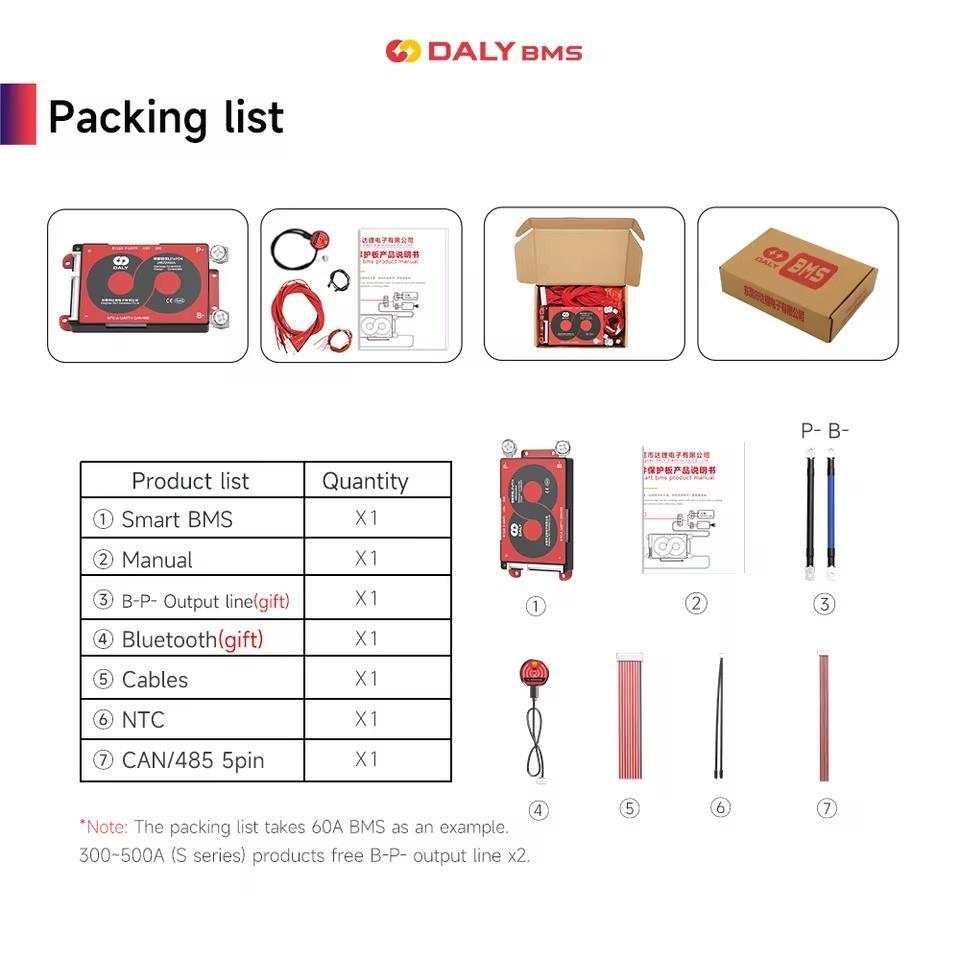

to install*Note: The packing list takes 60A BMS asan example.300~500A (S series) productsfree B-P- output line x2.Activate the BMS
The BMS is automatically activated when used for the first time.If the BMS is dormant, it can be activated in 4 ways:
(Before the bms is activated, please make sure that the bms,the cable,the battery are connected correctly, and the NTC is connected with the bms.)
1. Use key switch.
3.Using CAN/RS485 communication or Bluetooth connect to Mobile APP
2. Press buttons on bluetooth module or SOC indicator.
4. Charge or discharge the battery.
