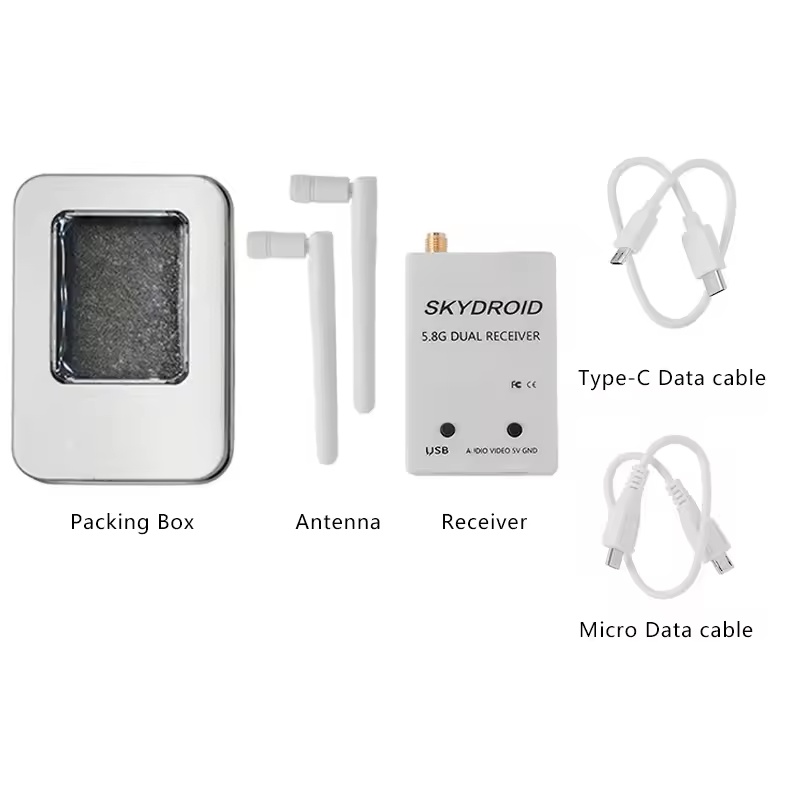

SKYDROID 5.8Ghz 150CH FPV Receiver UVC 5.8G Dual Receiver Double/Single Antenna OTG Smartphone For Android Phone RC Drone Parts

Features:
1.150CH 5.8Ghz analog signal, 1500 scans cover all bands.
2.Resolution 640*480 30fps.
3.Can display frequency spectrum, to check the signal strength of antenna or transmitter.

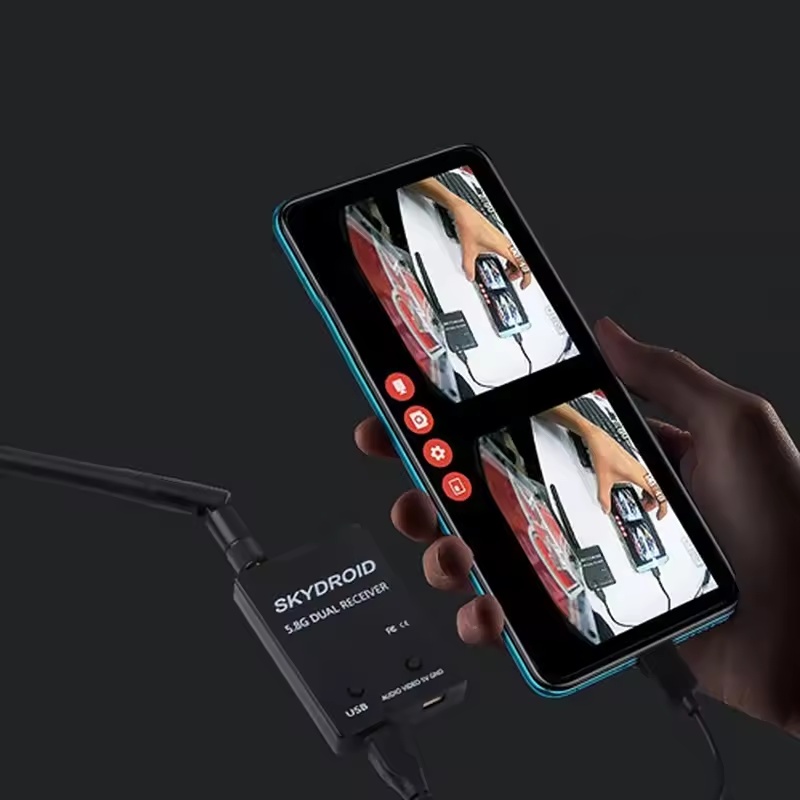

4.Support dual display on smartphone, can be used as VR goggles.
5.Please calibrate it in open area, and keep away from transmitter more than 30m. Long press the menu button and power on receiver, enter into calibration mode.
Descriptions:
1.Support OTG cable connect to android smartphone or tablet.

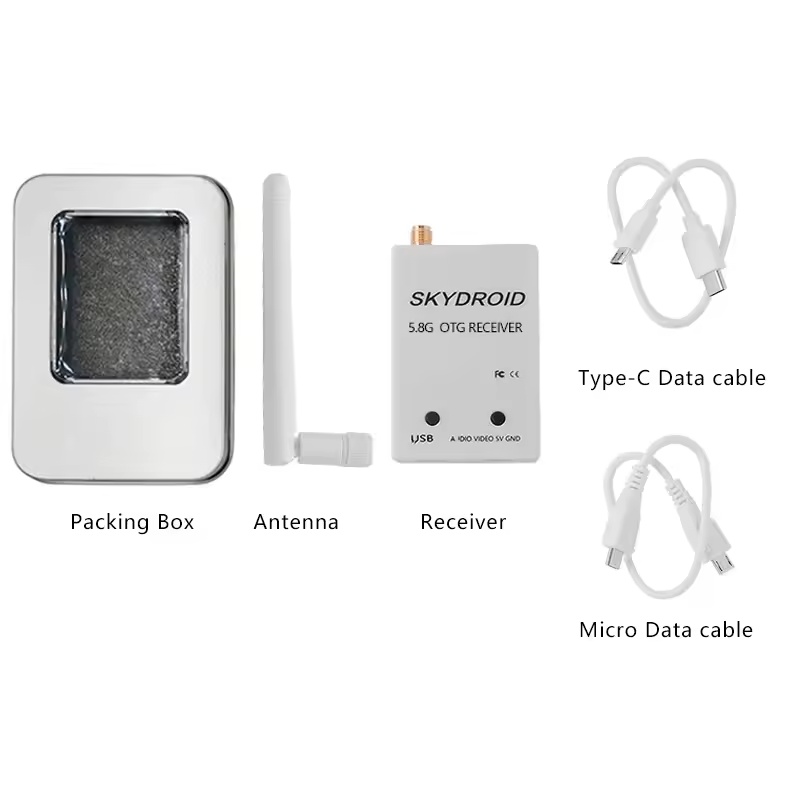

2.Single Antenna FPV receiver for Android Tablet PC Monitor.

Specifications:
Material: Plastic
Color: Black, White(Optional)
Frequency: 5645MHz~5945MHz
Resolution: 640*480 30fps
Working Current: USB 5V 190mA
Connector: RP-SMA
Working Temp.: -10°~65°

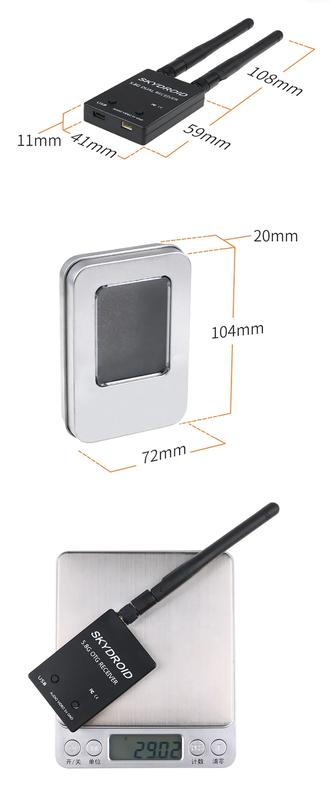

Size: 59x40x11mm/2.30x1.56x0.43in
Weight: 29g/1.02oz

Working Methods

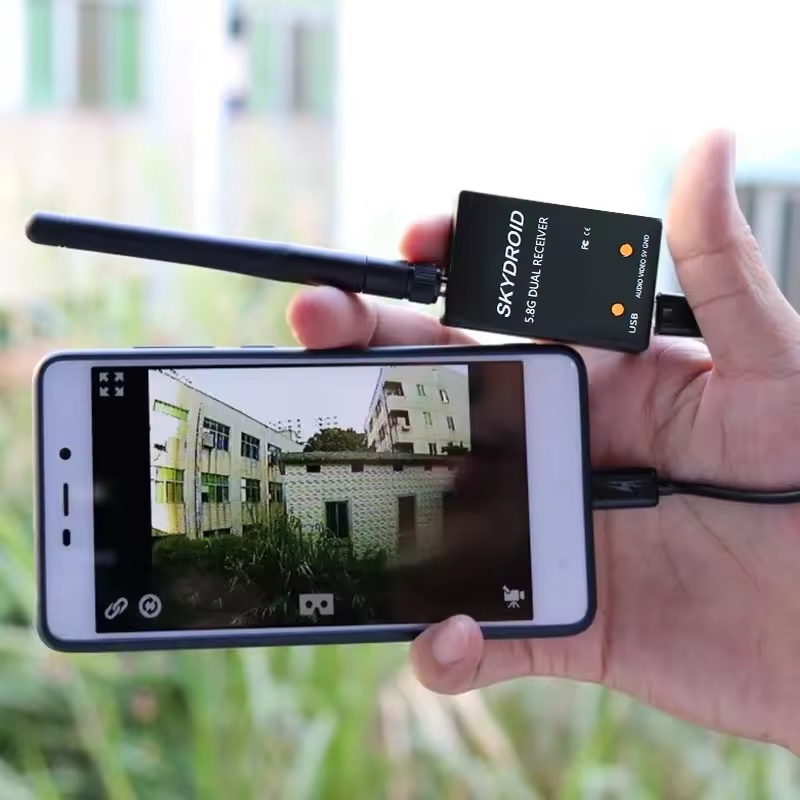

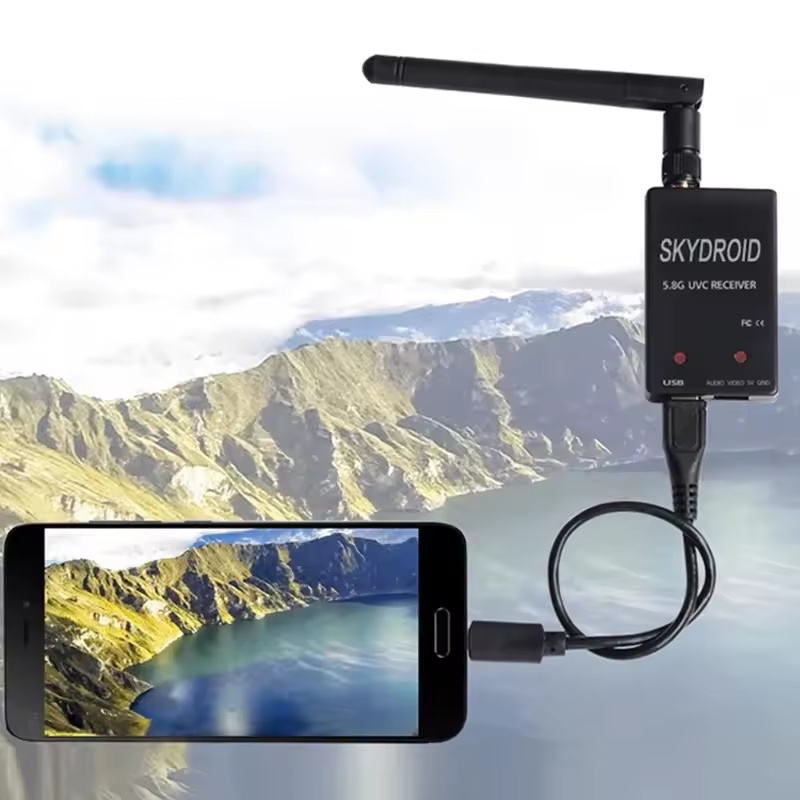

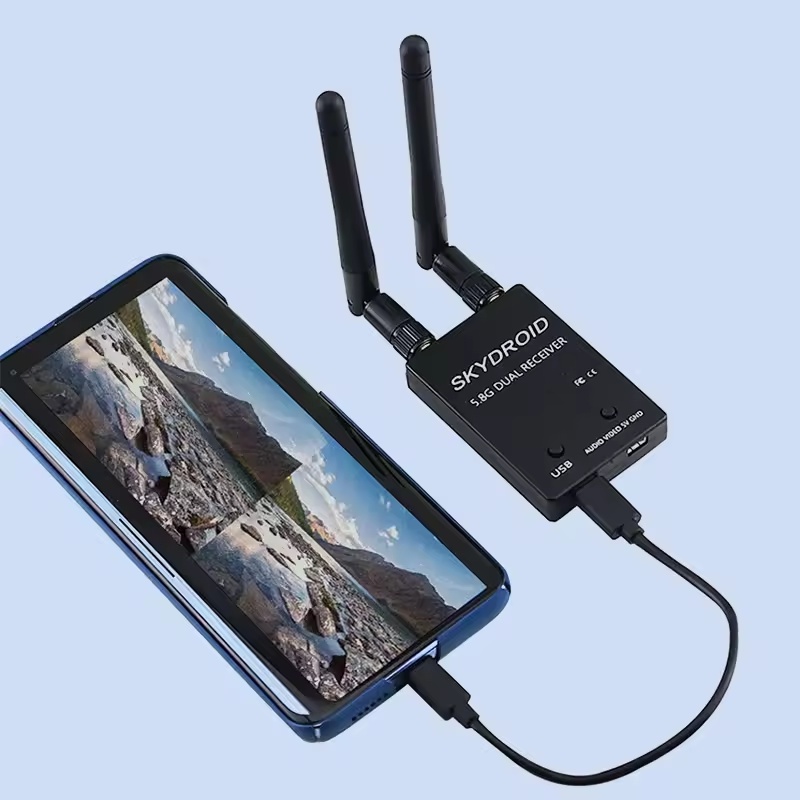

Android Smartphone:Support OTG cable connect to android smartphone or tablet(no ios)
1.Install APP:
search "FUAV" in store to download.

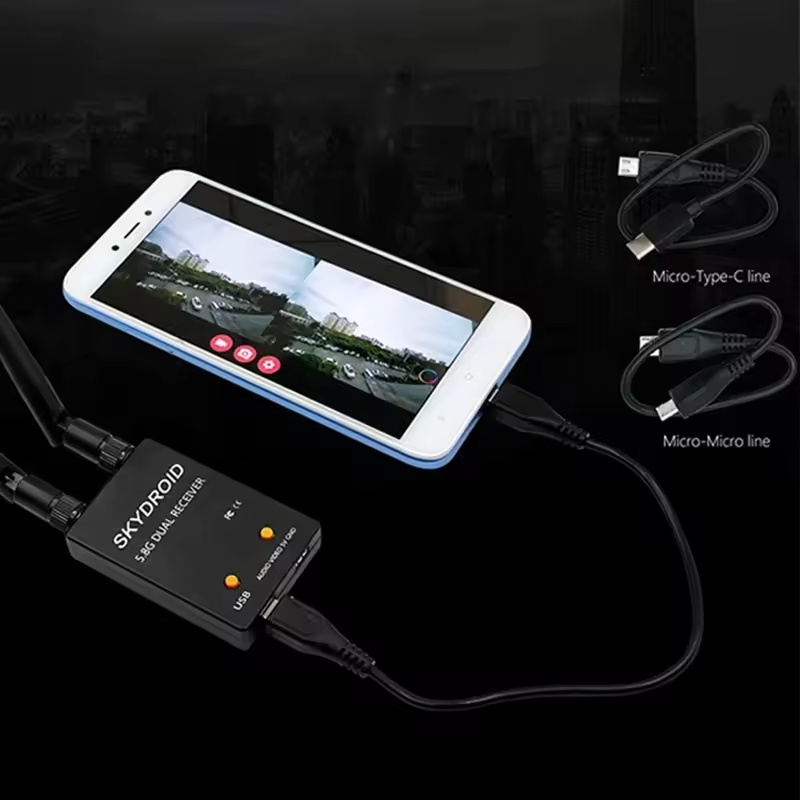

2.Use OTG cable connect with receiver
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal automatically.
4.Video links: to check if your smartphone support USV

how to use it with computer
PC:
1.Use usb cable to connect it with PC.
2.XP: open the camera;WIN7: install AMCP camera software;WIN10: open camera. Or MP groundstation.
3.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.
AV:
1.Use 4P cable (should DIY by player), 5V power input.
2.After it power on, press the menu button for 3 seconds,it will self-search frequency and lock the strongest signal.
