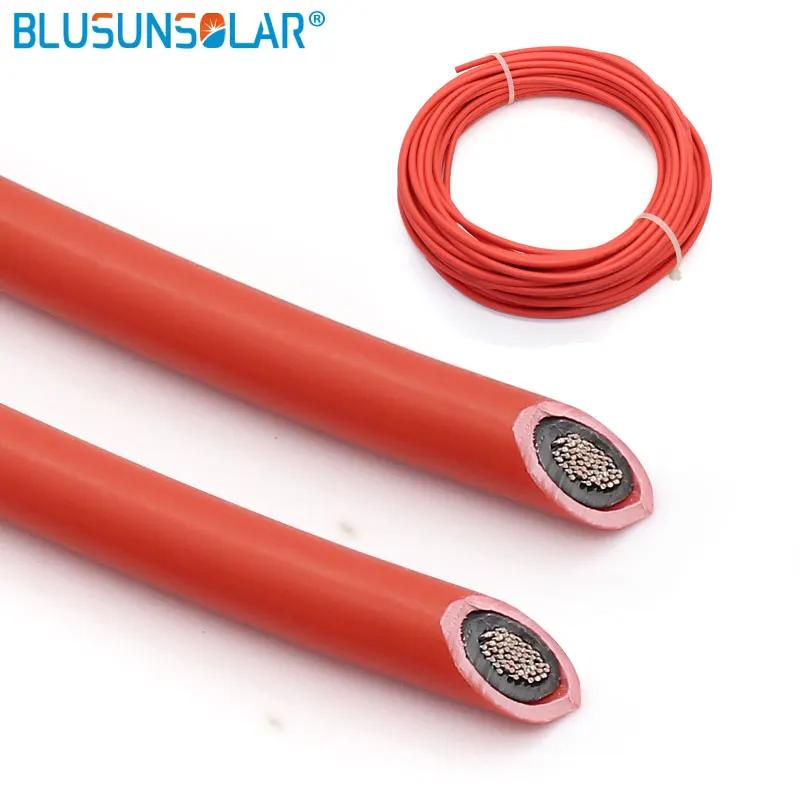

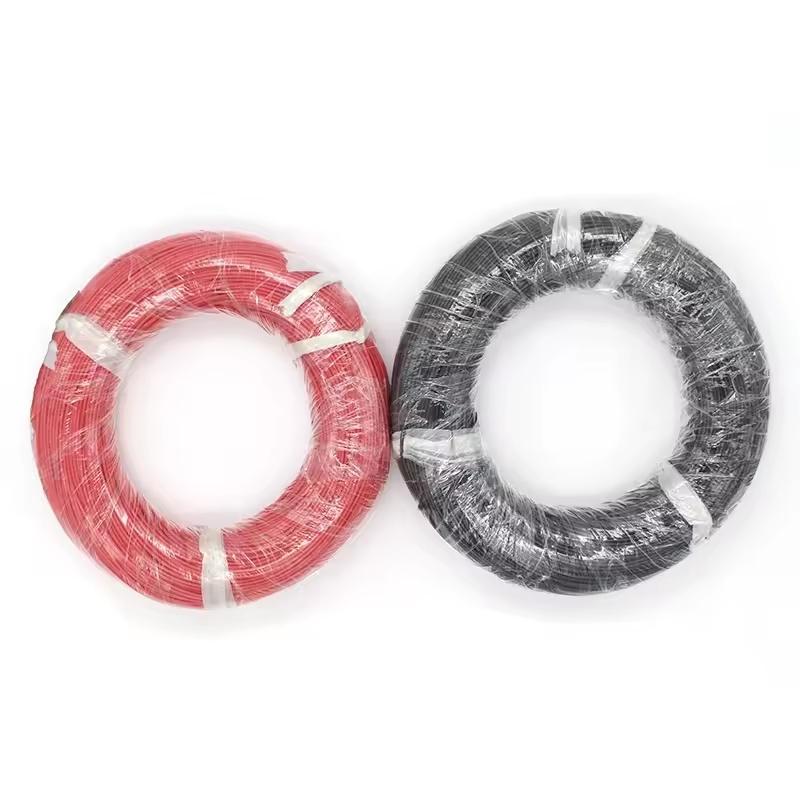

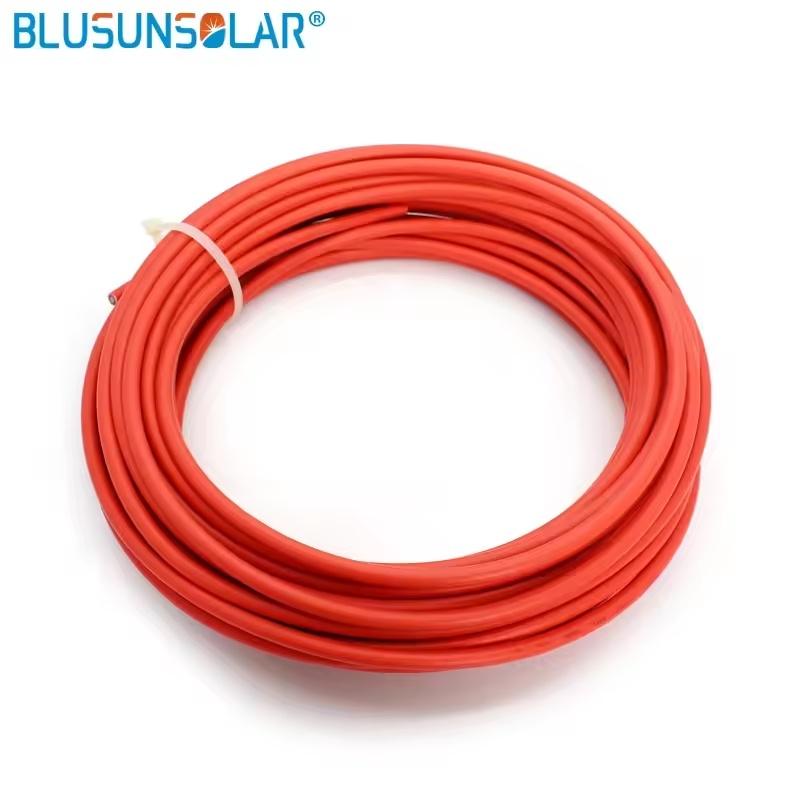

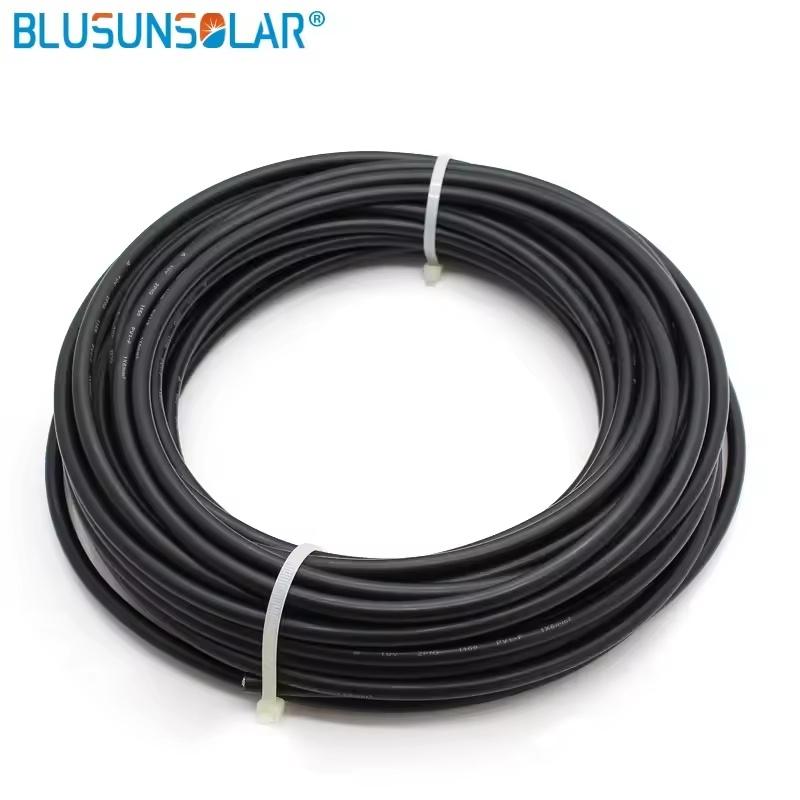

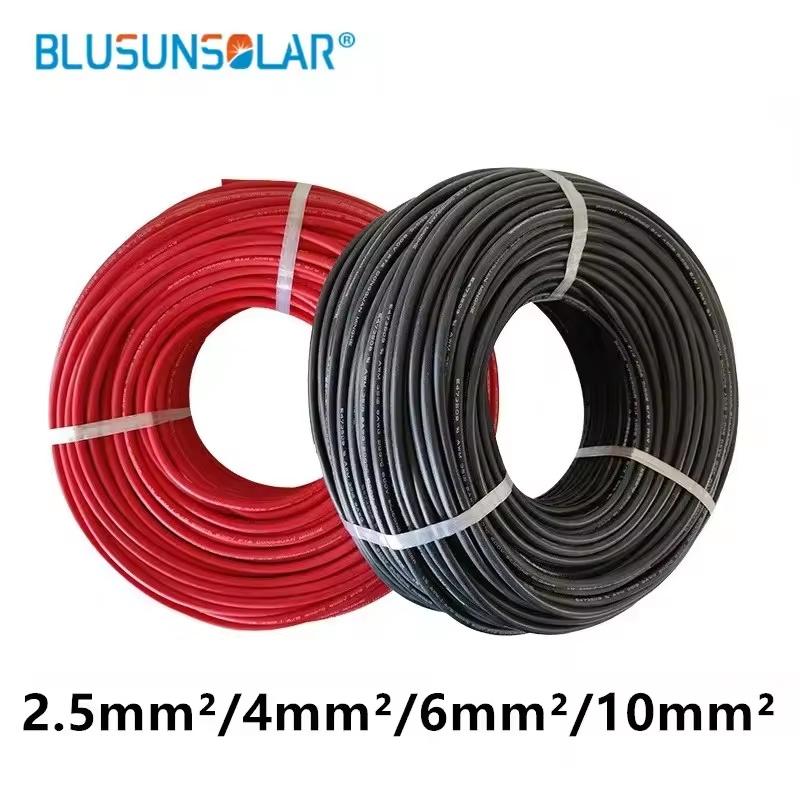

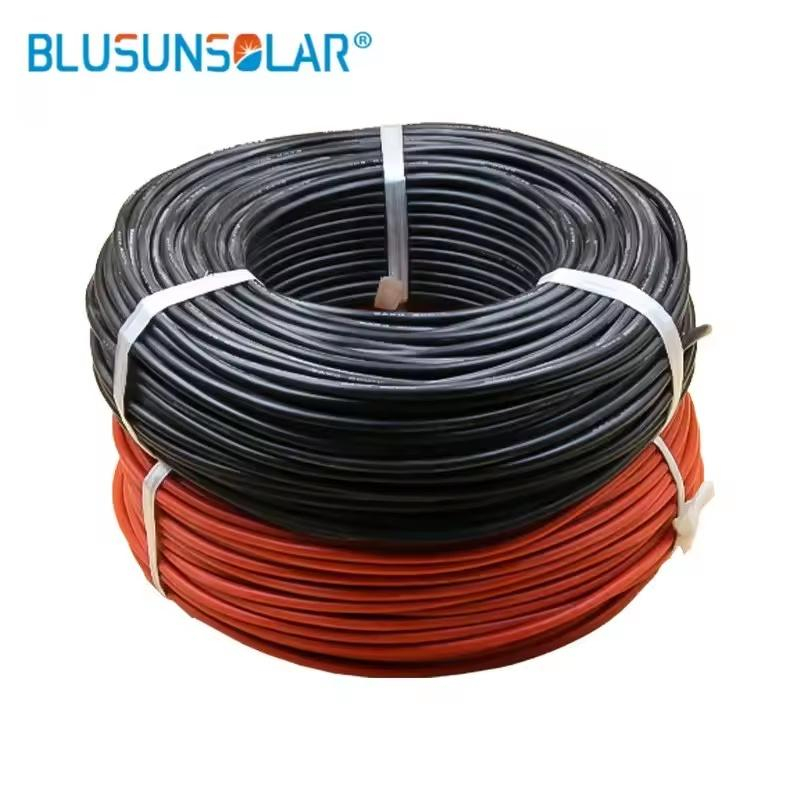

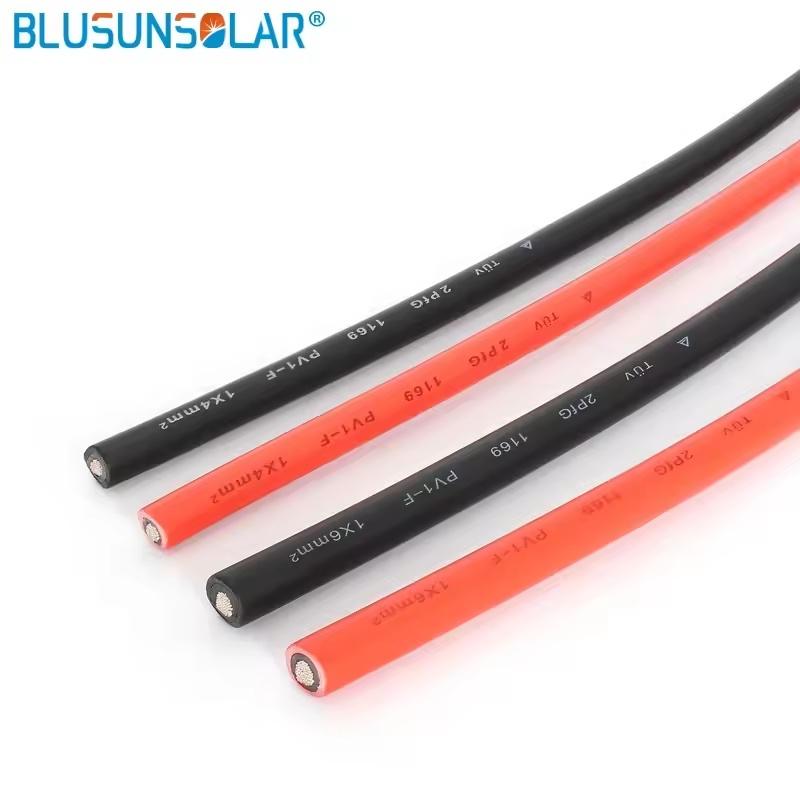

Red+Black Solar Cable Photovoltaic Wire 1500V 12/10 AWG 4mm2 6mm2 Cable Tinned Copper XLPE Jacket for PV Panels
Products Packing:
1m 4mm2: 1m Black+1m Red
5m 4mm2: 5m Black+5m Red
10m 4mm2: 10m Black+10m Red
1m 6mm2: 1m Black+1m Red
5m 6mm2: 5m Black+5m Red
10m 6mm2: 10m Black+10m Red
Products Description:

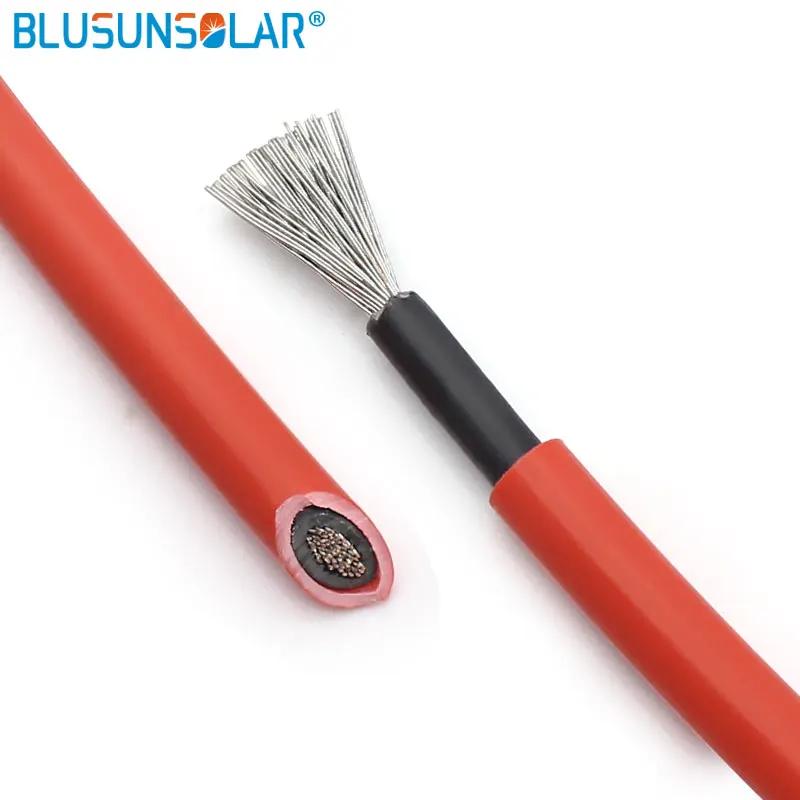

1,Conductor: Stranded, tinned copper,
2,Inner insulation: XLPE
3,Outer jacket: PVC
4,Color: Black and Red
Technical specification:
1,Nominal voltage: 600/1000V AC
2,Test voltage: AC 2.5 KV
3,Temperature rating: -40C~90C wet or dry,
4,Ambient temperature :> 25 years -40C~ + 90C
Material propertied/standards:
1,Fire performance: IEC 62930
2,Smoke emission: IEC 62930
3,Low fire load: DIN 51900
Advantages:
1,Electron- beam cross-linked compounds
2,UV,ozone and hydrolysis resistant
3,High temperature resistant, the materials do not melt or flow
4,Good cold flexibility
5,Very long service life > 25 years at 90C
6,Compatible to all popular connectors
